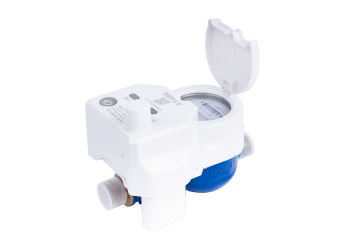

4G IoT Water Meter (Without Valve)

NB-IoT water meters are a series of remote water meters developed based on NB-IoT communication.

Features

Low power consumption
Long communication distance
Strong anti-interference ability

Applications

Residential, Industrial, Agricultural, Bulk

Get A Quote Brochure

Features

Based on NB-IoT Communication Technology

Hac ita persuasione reducti intra moenia bellatores obseratis undique portarum aditibus, propugnaculis insistebant et pinnis, congesta undique saxa telaque habentes in promptu, ut si quis se proripuisset interius, multitudine missilium sterneretur et lapidum.

Communication is mainly affected by operator base station signals
No additional centralized data collection equipment is required
Meter reading data is actively reported, and control commands are remotely issued
Each water meter is an independent terminal
The number of reports and the reporting time can be freely set
Convenient construction and installation, no wiring required
Supports emergency valve opening function in emergency situations

IP68
Protection
Independent Terminal
Remote Control & Data Upload
Easy to Install
No Wiring Required

Applications

Waterworks

Superatis Tauri montis verticibus qui ad solis ortum sublimius attolluntur, Cilicia spatiis porrigitur late distentis dives bonis omnibus terra, eiusque lateri dextro adnexa Isauria.

Industrial

Superatis Tauri montis verticibus qui ad solis ortum sublimius attolluntur, Cilicia spatiis porrigitur late distentis dives bonis omnibus terra, eiusque lateri dextro adnexa Isauria.

Agricultural

Superatis Tauri montis verticibus qui ad solis ortum sublimius attolluntur, Cilicia spatiis porrigitur late distentis dives bonis omnibus terra, eiusque lateri dextro adnexa Isauria.

Utilities

Superatis Tauri montis verticibus qui ad solis ortum sublimius attolluntur, Cilicia spatiis porrigitur late distentis dives bonis omnibus terra, eiusque lateri dextro adnexa Isauria.

Tech Specs

Diameter (DN) mm	15	20	25
Common Flow Rate (Q3) m³/h	2.5	4	4/6.3
Measurement Range (Q3/Q1)	R100
Metering Class	Level 2
Pressure Class	MAP16
Pressure Loss Class	P63 (≤0.063M Pa)
Operating Temperature	Cold water meter(T30):0.1°Cv30C;Hot water meter(T90):0.1°Cw90°C
Flow Profile Sensitivity Class	U10D5
Communication Interface	Wireless:NB-loT;Infrared:9600bps
Operating Frequency	NB:B3/B5/B8
Band Installation Method	H
Climate and Mechanical Environment Safety Class	Grade B
Electromagnetic Compatibility	Grade E1
Waterproofing Class	IP 68
Operating Voltage Case	3.6Vlithium battery,ER26500/ER34615
Material	Ductile Cast Iron Stainless Steel Copper
