4G Smart Water Meter (without Valve)

This is a new type of smart water meter that uses a Rotary Type Water Meter as its base.
Internal structure: Equipped with an integrated communication module and SIM card. 4G network enables direct transmission of water meter-collected data (flow rate, temperature, signal strength) to the meter reading system, achieving data collection, remote control, and fault alarm.
External structure(A split design): the electronic unit is installed in an independent fully sealed cavity, with a waterproof performance of IP68 rating. It maintains the structure and accuracy of traditional wet-type water meters.

Features
  • Mechanical & Electrical Design: Modular structure (mechanical & electronic parts), screw-assembled for easy maintenance
  • Network Coverage: NB & 4G hybrid, wide coverage for rural, urban, indoor scenarios
  • Communication: Direct base station connection, supports CT AEP, CM OneNET, UDP protocols
Applications

Residential

Get A Quote Brochure

Features

  • Measurement: Non-magnetic/magnetoresistive sampling, accuracy 1L/10L; The electronic section: equipped with bi-directional metering capability,  synchronized with base meter to avoid disputes.
  • Emergency Valve (Valve-controlled): Opens automatically in emergencies without network signal, maintaining water supply.
  • Multiple modes of Data Reporting: daily, N times/day, every N days, specified dates; N≥2.
  • Time-sharing Reporting: Prevents server congestion from a large number of simultaneous terminal reports.
  • Abnormality Alarm: Alerts for power failure, sensor faults, valve faults.
  • Prepaid Function (Valve-controlled): Enables back-end prepaid with upper system.
  • IP68 protection grade: Adopts a dual protection design of structural sealing and potting sealing, with good waterproof performance.
  • Parameter setting function: Meter-end parameters can be set through the external IR port and the pre-machine system.
  • Touch wake-up function: The meter end has a wake-up function; uploading can be triggered by touching the button or magnetic wake-up switch for more than 3 seconds, and the IR communication function is turned on at the same time.
  • Periodic reporting function: The meter has optional daily scheduled reporting, interval reporting, and on-the-hour reporting functions.
  • Data retransmission function: When the current data reporting is unsuccessful, the data will be automatically re-transmitted in the next retransmission cycle; the retransmission cycle and number of retransmissions can be set;
  • Large-caliber IoT Water Meter has a disconnection alarm function (split type).

Tech Specs

Nominal Diameter (DN), mm 15 20 25
Permanent Flow Rate (Q3), m³/h 2.5 4 6.3
Measurement Range (Q3/Q1) R 160
Metering Accuracy Class Class 2
Max. Pressure MAP16
Pressure Loss ΔP63 (≤0.063MPa)
Working Temperature Cold Water Meter (T30): 0.1℃~30℃ Hot Water Meter (T90): 0.1℃~90℃
Flow Profile Sensitivity U0/D0
Communication Interface Wireless: 4G_Cat1    Infrared: 9600bps
Operating Frequency Band 4G: B1/B3/B5/B8/B34/B39
Installation H
Environmental Class Class O
Electromagnetic Compatibility Class E1
Waterproof Rating IP68
Working Voltage 3.6V Lithium Battery, ER26500/ER34615
Case Material Ductile Iron/Stainless Steel/Copper

Don't hesitate to contact us for customization. Contact Us

Tech Specs

Max. allowable error: The Max. allowable error in the low zone from Q1 to Q2 (excluding Q2) is ±5% (for cold and hot water meters); the Max. allowable error in the high zone from Q2 (inclusive) to Q4 is ±2% (for cold water meters) and ±3% (for hot water meters).

DN Q3/Q1 Q2/Q1 Q4(m³/h) Q3(m³/h) Q2(m³/h) Q1(m³/h)
15 100 1.6 3.125 2.5 0.04 0.025
15 160 1.6 3.125 2.5 0.025 0.0156
20 100 1.6 5 4 0.064 0.04
20 160 1.6 5 4 0.04 0.025
25 100 1.6 7.875 6.3 0.1008 0.063
25 160 1.6 7.875 6.3 0.063 0.0393
32 100 1.6 12.5 10 0.16 0.1
32 160 1.6 12.5 10 0.1 0.0625
40 80 1.6 50 40 0.8 0.5
40 160 1.6 50 40 0.4 0.25
50 80 1.6 50 40 0.8 0.5
50 200 1.6 50 40 0.32 0.2
65 80 1.6 78.75 63 1.26 0.7875
65 200 1.6 50 40 0.32 0.2
80 80 1.6 125 100 2 1.25
80 200 1.6 78.78 63 0.504 0.315
100 80 1.6 200 160 3.2 2
100 200 1.6 125 100 0.8 0.5
150 80 1.6 500 400 8 5
150 200 1.6 312.5 250 2 1.25
200 80 1.6 787.5 630 12.6 7.875
200 200 1.6 500 400 3.2 2

Installation Dimensions

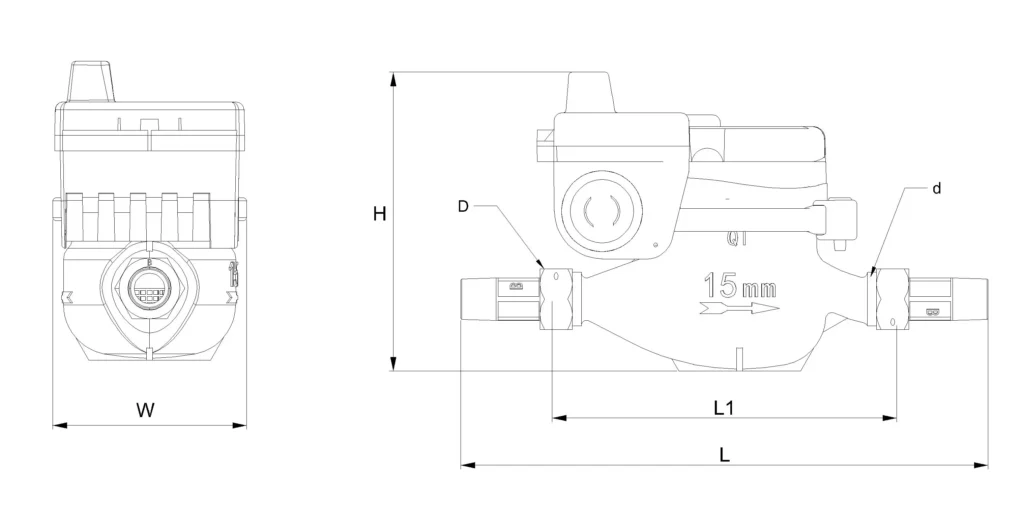

DN15~25 Valveless integrated type

DN (mm)L (mm)L1 (mm)H (mm)W (mm)dDKg
1525816515096R1/2G3/4 B1.6
2029919515096R3/4G1 B1.8
2534522515096R1G1 1/4 B2.5

DN32~40 Valveless integrated type

DN (mm)L (mm)H (mm)W (mm)d (mm)D
DN3223019094G1 1/4G1 1/2B
DN40245225116G1 1/2G2B

DN40~200 Split type

(DN)LHWDdConnecting Bolt and Quantity
WPH402002001501501104-M16
WPH502002001651651254-M16
WPH652002201851851454-M16
WPH802252802002001604-M16/8-M16
WPH1002502902202201808-M16
WPH1503003202852852408-M20(1.0MPa)
WPH2003503643403402958-M20(1.0MPa)
WPH20035036434034029512-M20(1.6MPa)
WS40245220154G1 1/2 (d)G2B (D)
WS502802281651651254-M16
WS653002381851851454-M16
WS803702902002001604-M16/8-M16
WS1003703062202201808-M16
WS1505004452852852408-M20
WS2005005643603402958-M20/12-M20
