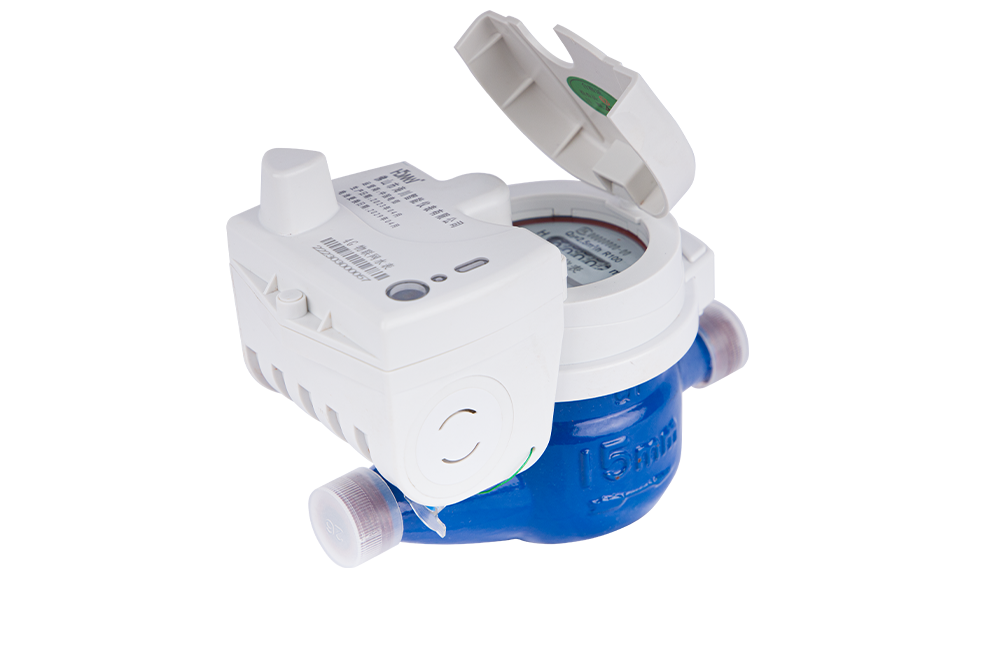

4G Smart Water Meter (without Valve)

This is a new type of smart water meter that uses a Rotary Type Water Meter as its base.

Features

Mechanical & Electrical Design: Modular structure (mechanical & electronic parts), screw-assembled for easy maintenance
Network Coverage: NB & 4G hybrid, wide coverage for rural, urban, indoor scenarios
Communication: Direct base station connection, supports CT AEP, CM OneNET, UDP protocols

Applications

Residential, Industrial, Agricultural

Get A Quote Brochure

Features

4G Communication with Waterproof Split Structure

Equipped with an integrated communication module and SIM card, the 4G network enables direct transmission of water meter data (flow rate, temperature, signal strength) to the meter reading system for data collection, remote control, and fault alarms. The external split design places the electronic unit in an independent fully sealed cavity with IP68 waterproof performance, while maintaining the structure and accuracy of traditional wet-type water meters.

Measurement: Non-magnetic/magnetoresistive sampling, accuracy 1L/10L; The electronic section: equipped with bi-directional metering capability, synchronized with base meter to avoid disputes.
Emergency Valve (Valve-controlled): Opens automatically in emergencies without network signal, maintaining water supply.
Multiple modes of Data Reporting: daily, N times/day, every N days, specified dates; N≥2.
Time-sharing Reporting: Prevents server congestion from a large number of simultaneous terminal reports.
Abnormality Alarm: Alerts for power failure, sensor faults, valve faults.
Prepaid Function (Valve-controlled): Enables back-end prepaid with upper system.

Tech Specs

Nominal Diameter (DN), mm	15	20	25
Permanent Flow Rate (Q3), m³/h	2.5	4	6.3
Measurement Range (Q3/Q1)	R 160
Metering Accuracy Class	Class 2
Max. Pressure	MAP16
Pressure Loss	ΔP63 (≤0.063MPa)
Working Temperature	Cold Water Meter (T30): 0.1℃~30℃ Hot Water Meter (T90): 0.1℃~90℃
Flow Profile Sensitivity	U0/D0
Communication Interface	Wireless: 4G_Cat1 Infrared: 9600bps
Operating Frequency Band	4G: B1/B3/B5/B8/B34/B39
Installation	H
Environmental Class	Class O
Electromagnetic Compatibility	Class E1
Waterproof Rating	IP68
Working Voltage	3.6V Lithium Battery, ER26500/ER34615
Case Material	Ductile Iron/Stainless Steel/Copper
