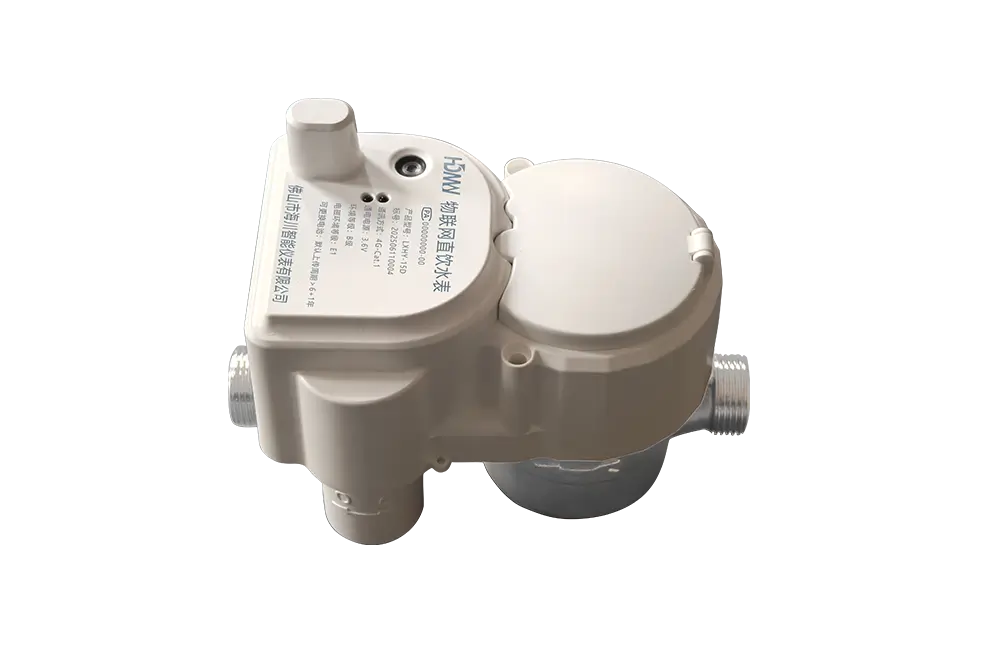

Prepaid Direct Drinking Water Meter

This is a Smart water meter with Volumetric type and Rotary Type Water Meter as its base.

Features

Strong anti-interference: Magnetoresistive sampling, 1L accuracy; The electronic section: equipped with bi-directional metering capability, synchronized with base meter to avoid disputes.
Protection: IP68 rating, dual sealing (structural + potting) for excellent waterproof performance.
Mech-Electrical Design: Modular (mechanical & electronic parts), screw-assembled for easy maintenance.
Parameter Setting: Configurable via external infrared port and front-end system.
Touch Wake-up Function: Activated by touch button or magnetic switch (≥3s), activate the trigger module to report data and infrared communication.

Applications

Residential, Industrial, Agricultural

Get A Quote Brochure

Features

Remote Control & Alarm

4G network/NB-IoT enables direct transmission of water meter-collected data (flow rate, temperature, signal strength) to the meter reading system, achieving data collection, remote control, and fault alarm.

Platform Communication: Supports AEP/OneNet transparent transmission, UDP direct connection, and CT/CM/CU thing models; fully compatible with IoT platform NB-IoT meters for seamless switching.
Data Retransmission: Auto-retransmits failed data in next cycle; retransmission cycle and count configurable.
Reporting Frequency: 4 modes (daily, multiple times/day, every multiple days, specified dates).
Time-sharing Reporting: Prevents server congestion from a large number of simultaneous terminal reports.
Emergency Valve (Valve-controlled): Opens automatically in emergencies without network signal, maintaining water supply.
Overflow Valve Closing: Auto-closes when consumption exceeds set value; reopens manually to avoid waste from leakage or forgotten faucets.

Tech Specs

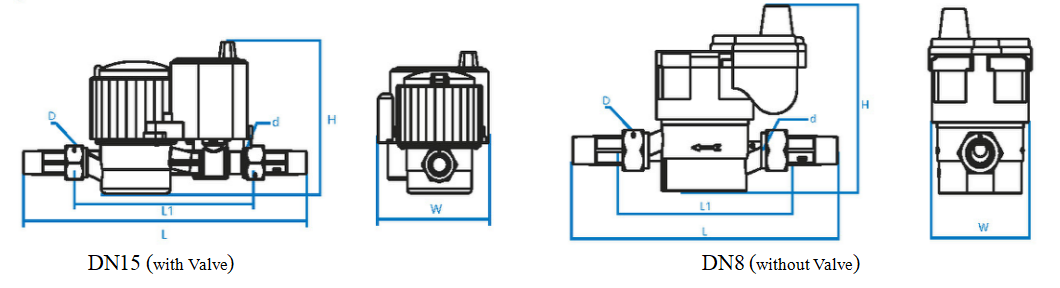

Nominal Diameter (DN), mm	8	15
Permanent Flow Rate (Q3), m³/h	1.0	1.0
Measurement Range (Q3/Q1)	R 160
Metering Accuracy Class	Class 2
Max. Pressure	MAP16
Pressure Loss	ΔP63 (≤0.063MPa)
Working Temperature	Cold Water Meter (T30): 0.1℃~30℃ Hot Water Meter (T90): 0.1℃~90℃
Flow Profile Sensitivity	U10/D5
Communication Interface	Wireless: NB-IoT/4G_Cat.1 Infrared: 9600bps
Operating Frequency Band	4G: B1/B3/B5/B8/B34/B39
Installation	H
Environmental Class	Class O
Electromagnetic Compatibility	Class E1
Waterproof Rating	IP68
Working Voltage	3.6V Lithium Battery, ER26500/ER34615
Case Material	Stainless Steel
